£679.45

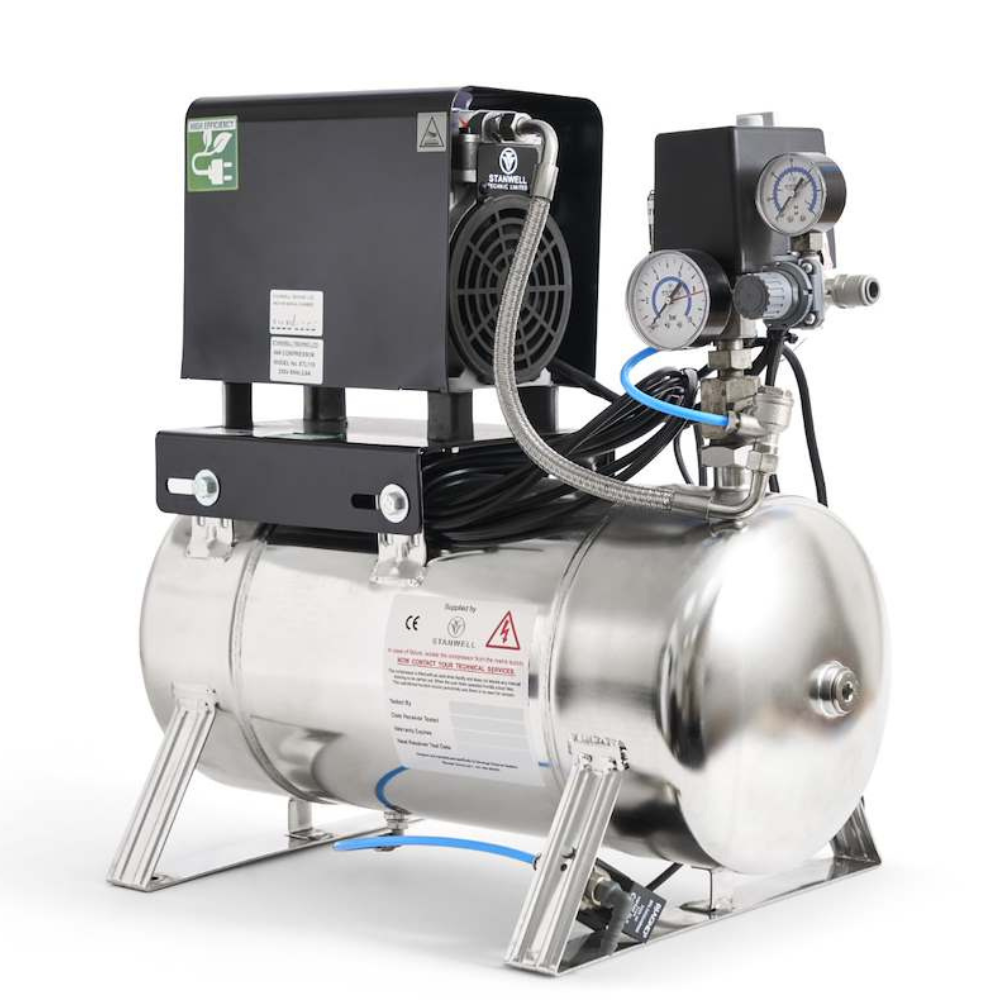

The Stanwell STL110 is the industry’s benchmark beverage air compressor, with more than 20,000 active units in the field—a testament to its reliability, engineering integrity, and long-term performance. Designed for demanding commercial environments, it features a lightweight stainless-steel receiver, non-corrosive fittings, and fully oil-free operation to ensure consistently clean, dry air for beverage systems. Enhanced with automatic condensate removal and fail-safe overload protection, the STL110 delivers dependable output for high-volume installations across bars, pubs, hospitality venues, and large dispense networks.
| Oil-Free Compression System | Ensures contamination-free, hygienic air supply for beverage dispensing. |
|---|---|
| Lightweight Stainless-Steel Receiver | Corrosion-resistant construction for long-term durability and clean operating conditions. |
| Non-Corrosive Fittings | Engineered for reliability in moisture-rich environments. |
| Automatic Condensate Removal | Maintains system efficiency and reduces maintenance requirements. |
| Optional Wall-Mount Bracket | Flexible installation for space-restricted service areas. |
| Regulatory Compliance | Meets PED 97/23 CE and Machinery Directive 98/37 EC standards. |
| Fail-Safe Overload Protection | Safeguards internal components during extreme operating conditions. |
| Thermal Winding Cut-Out | Provides additional protection for continuous-duty applications. |
| • Start Current | 8 Amps |
|---|---|
| • Max Run Current | 2.6 Amps |
| • Power Consumption | 0.56 kW at 230 V (-6% / +10%) |
| • Nominal Pressure | 7 Bar |
| • Sound Level | 68–70 dB(A) |
| • Protection Class | IP23, F-Class Windings |
| • 100% Continuous Rating At | 7 Bar |
| • Max Ambient Temperature | 40°C |
| • Assembled Weight | 21 kg |
| • Receiver Volume | 24 L |
| • Air Outlets | 3/8" JG |
| • Receiver Recharge Time | 48 seconds (4.5 Bar → 7 Bar) |
| • Max G56 Pumps Driven | 14–16 (depending on top pressure) |
| • Max T5000 Pumps Driven | 21 |
| • Compressor Type | Oil-Free |
| • Receiver Material | Lightweight Stainless Steel |
| • Fittings Material | Non-Corrosive |
| • Condensate Removal | Automatic |
| • Wall Mount Option | Available |
| • Compliance Standards | PED 97/23 CE and Machinery Directive 98/37 EC |
| • Safety Features | Fail-Safe Overload Protection and Thermal Winding Cut-Out |
| • Warranty Period | 5 Years |
